Model

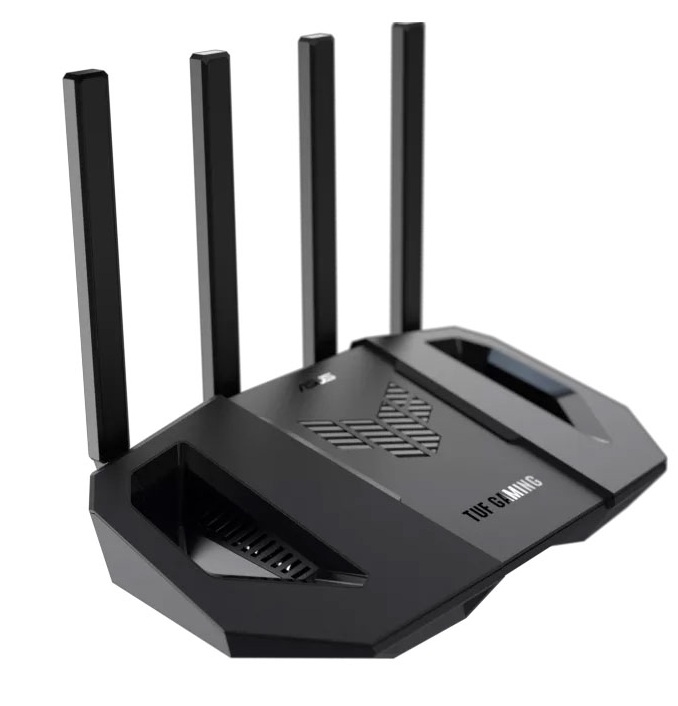

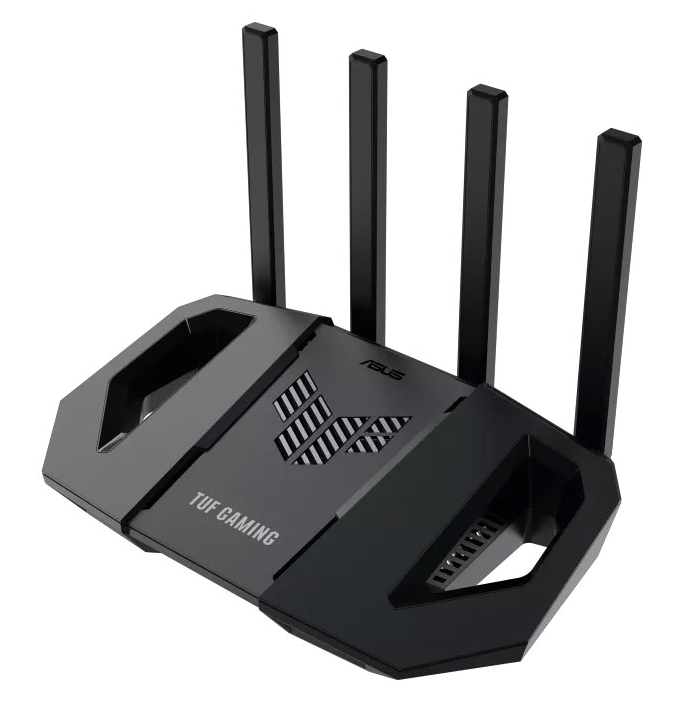

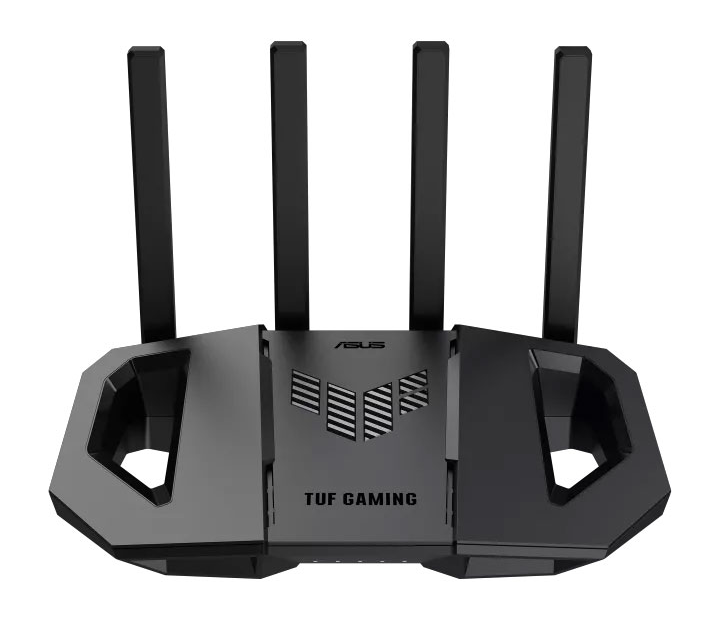

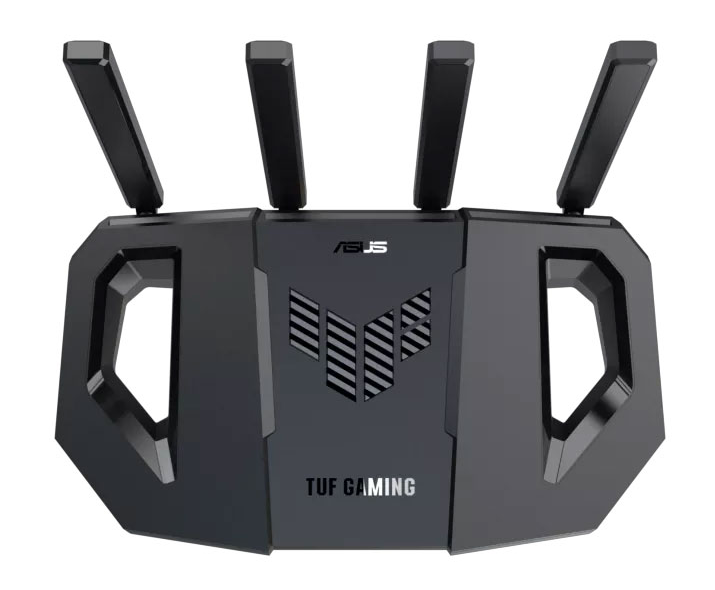

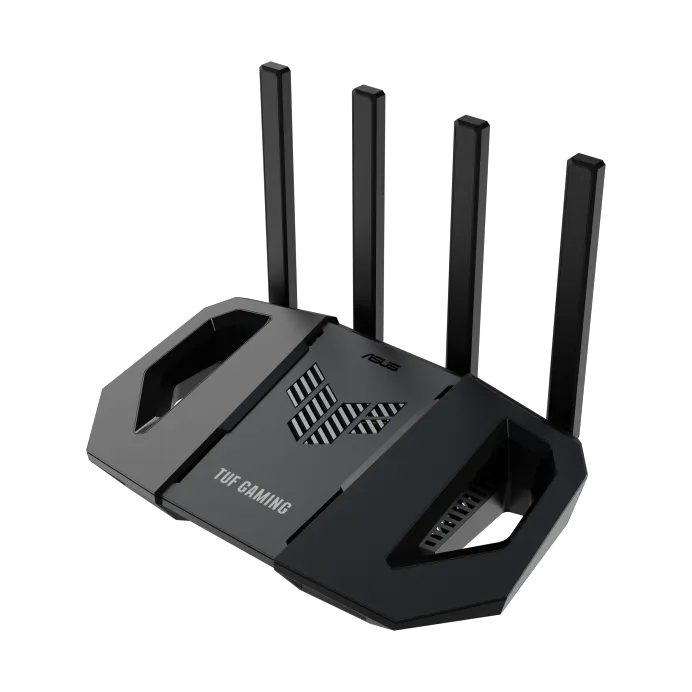

TUF Gaming BE3600 (TUF-BE3600)
Network Standard
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Product Segment
BE3600 ultimate BE performance : 688+2882 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna
External antenna x 4
Transmit / Receive
5GHz 2x2
2.4GHz 2x2
Processor
2.0 GHz quad-core processor
Memory
256 MB Flash
1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal

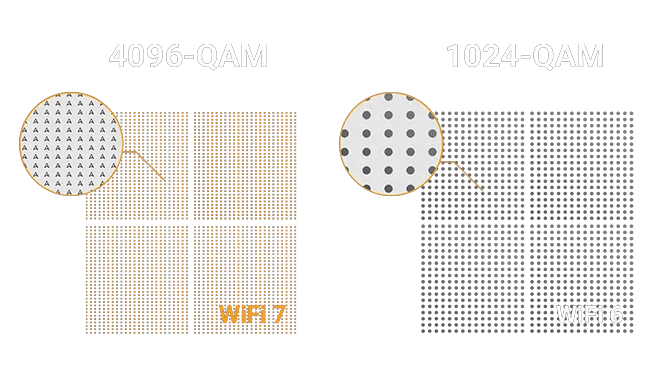

4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
5 GHz
2.4 GHz
2.4GHz / 5GHz
Operating Mode
Wireless router mode
Access point mode
Media bridge mode

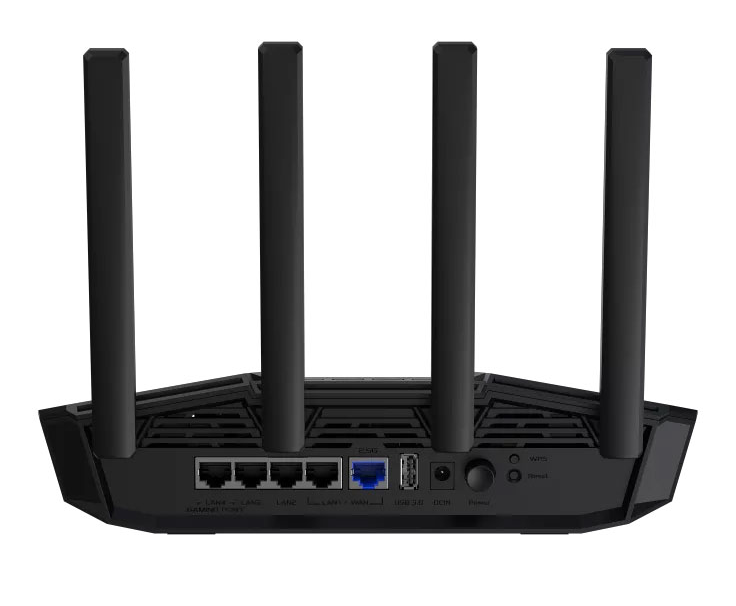

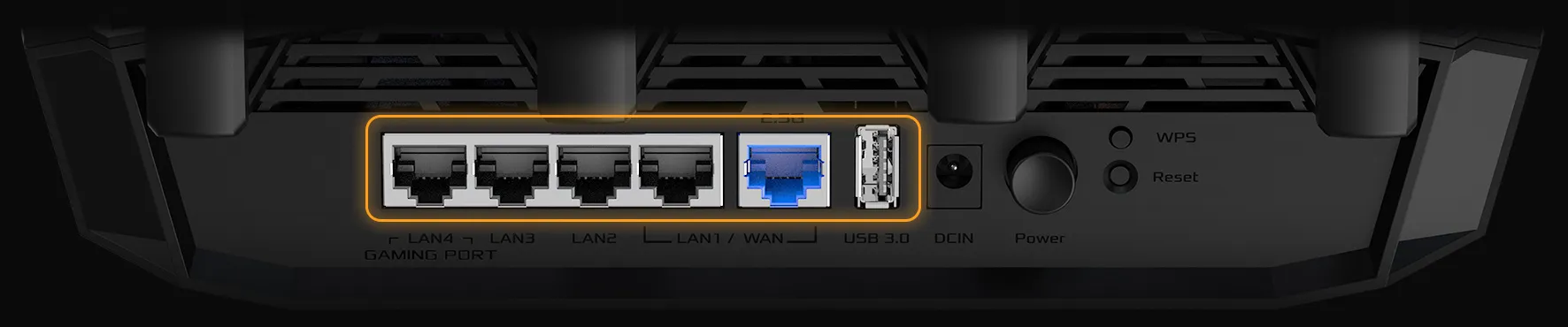

I/O Ports
RJ45 for 2.5 Gigabits BaseT for WAN x 1
RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1
Buttons
WPS Button, Reset Button, Power Button
LED Indicator
Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1
Power Supply
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current
Package Content
TUF Gaming BE3600 Dual Band WiFi 7 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Dimensions
274 x 168 x 205 mm
AiMesh
• AiMesh Node
• Primary AiMesh Router
AiMesh
Game
Mobile Game Mode
Game Boost / Acceleration
Parental Control
Safe Browsing
Customised Internet Schedule
"Allow you to block access to unwanted websites and apps."
Guest Network
Guest Network Connection Time Limit
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Security
DNS-over-TLS
Security Scan
SSH
Firewall
Let's Encrypt
WPS
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
• Infected Device Prevention and Blocking
• Two-Way IPS
• Malicious Site Blocking
• Router Security Assessment
VPN
VPN Client WireGuard
VPN Server WireGuard
VPN Fusion
VPN Server PPTP
VPN Server Open VPN
VPN Server IPSec
VPN Client PPTP
VPN Client Open VPN
VPN Client L2TP
Traffic Control
• Website History
Traffic Analyzer
• Wireless Traffic Monitor
• Wired Traffic Monitor
• Real-time Traffic Monitor
Traffic Monitor
Traditional QoS
• Bandwidth Limiter
• Bandwidth Monitor
Adaptive QoS
-- Maximum Bandwidth Limiter Rule : 32
-- Maximum Traditional QoS Rule : 32
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN
DDNS
DMZ
Port triggering
Port forwarding
3G / 4G LTE dongle
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN
Manually Assign IP Address
Wake on LAN (WOL)
IPTV
IGMP Snooping
DHCP Server
• Maximum Manually Assign IP Address Rule : 64
Wireless
RADIUS Client
Explicit Beamforming
Universal Beamforming
Airtime Fairness
Wireless Scheduler
WiFi MAC Address Filter
UTF-8 SSID
• Maximum MAC Filters : 64
USB application
Samba Server
Shared Folder Privileges
FTP Server
Time Machine
Media Server
AiDisk
Download Master
AiCloud
Safely Remove Disk
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Administration
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
