GALAX GeForce RTX 5060 Ti EX White 8GB GDDR7 Video Card 56ISN8MDCSBS

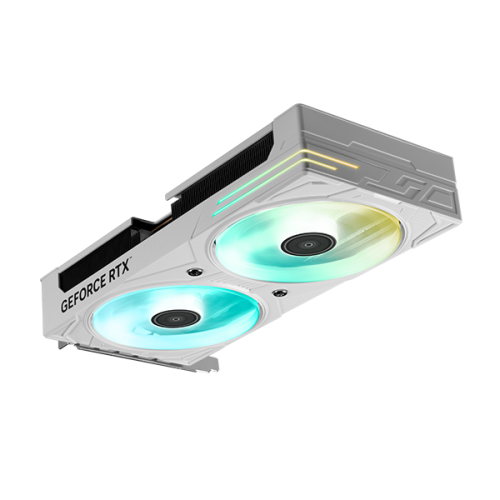

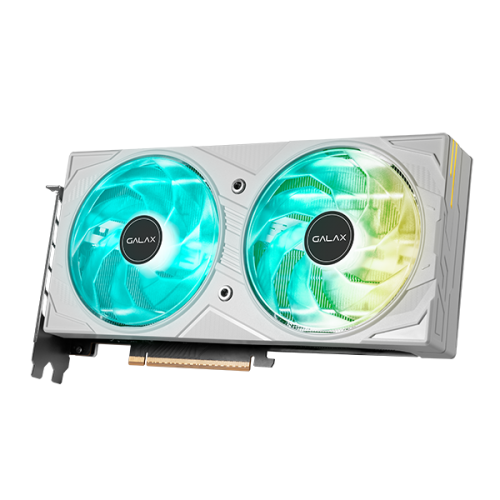

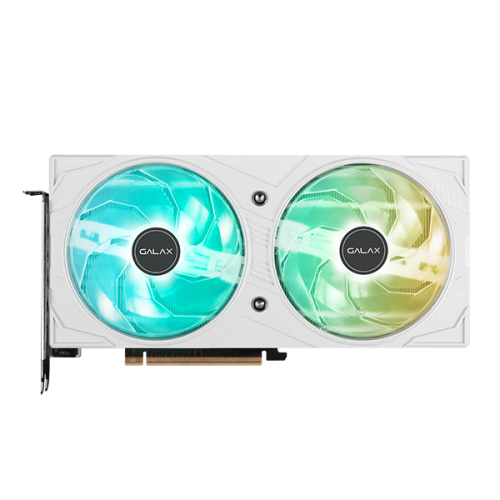

NVIDIA GALAX GeForce RTX 5060 Ti EX takes the stage as the latest addition of the brand-new lineup. Featuring 3*6mm heat pipes and the dual 102mm WINGS 3.0 fans that effectively dissipate heat of the graphics cards, the GPUs are optimized to run at optimal temperatures for sustained peak AI performance, letting the users to harness the groundbreaking power of NVIDIA’s newest Blackwell architecture.

It deliver world-leading AI performance for compact PCs, uplifting gaming experiences with faster speed and stunning visuals while simultaneously accelerating workflows for increased productivity.

Description

• Powered by the NVIDIA Blackwell Architecture and DLSS 4
• Dedicated Tensor Cores
• Dedicated RT Cores
• Microsoft DirectX® 12 Ultimate
• GDDR7 Graphics Memory
• NVIDIA DLSS 4
• NVIDIA® App
• NVIDIA G-SYNC®
• NVIDIA GPU Boost™
• Game Ready and NVIDIA Studio Drivers
• DisplayPort 2.1b, HDMI 2.1b
• VR Ready
• All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.

Specification

GPU Engine Specs:

• CUDA Cores: 4608
• Boost Clock: 2617MHz
• 1-Click OC Clock: 2632MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)

Memory Specs:

• Memory Speed: 28Gbps
• Standard Memory Config: 8GB
• Memory Interface Width 128-bit GDDR7
• Memory Bandwidth: 448GB/sec

Feature Support:

• PCI-E 5.0
• Windows 10/11 64-bit

Fan Feature:

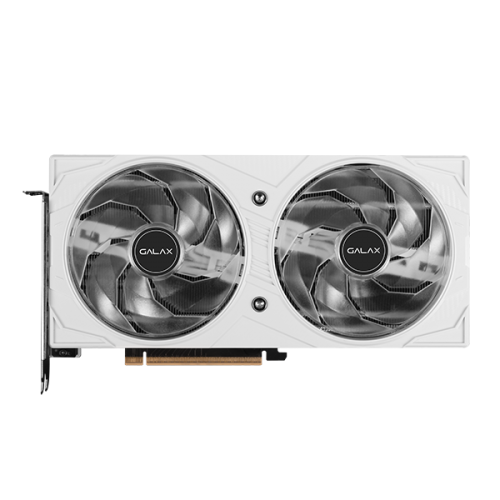

• 2 * 102mm
• WINGS 3.0 with Fan Stop @ Idle (All Fans)

Display Support:

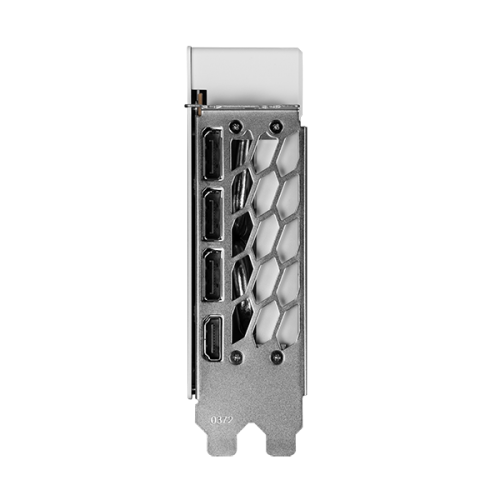

• DisplayPort 2.1b x 3, HDMI 2.1b x 1

Dimensions:

• Dimensions(with Bracket): 267*142.5*40.6mm
• Dimensions(without Bracket): 255*127*39.6mm

In Box Accessories:

• 1-Click Sync Pro cable

Requirement

1. PCI Express-compliant motherboard with one x16 graphics slot
2. System Space for 2 slot card required
3. PSU with 1 x PCIe 8-pin power connector
4. Minimum 600W or greater system power supply (Minimum is based on a PC configured with a Ryzen 9 9950X processor. Power requirements can be different depending on system configuration.)
5. 32GB system memory recommended
6. Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
