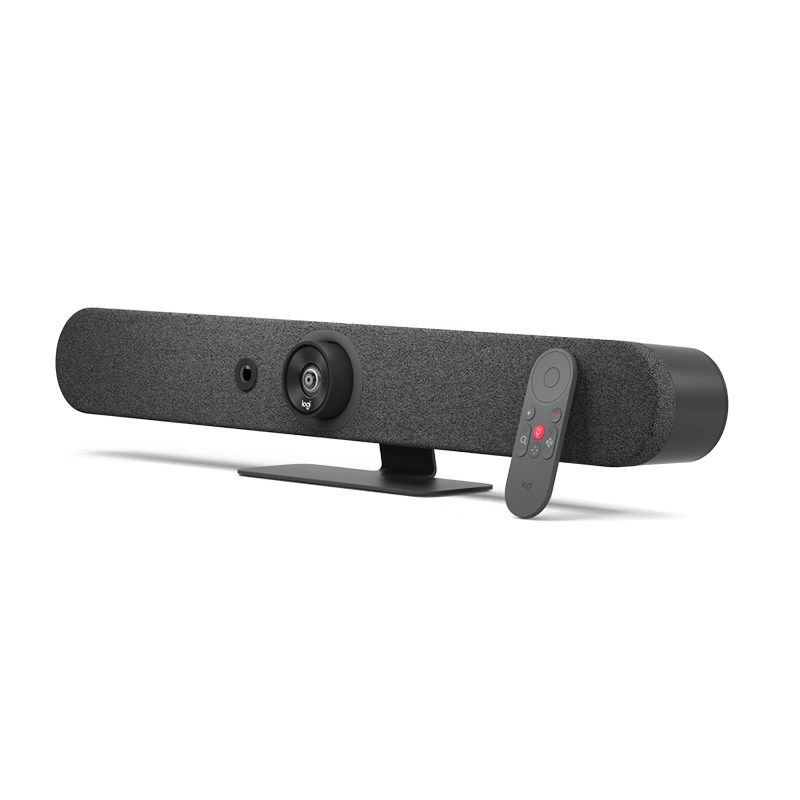

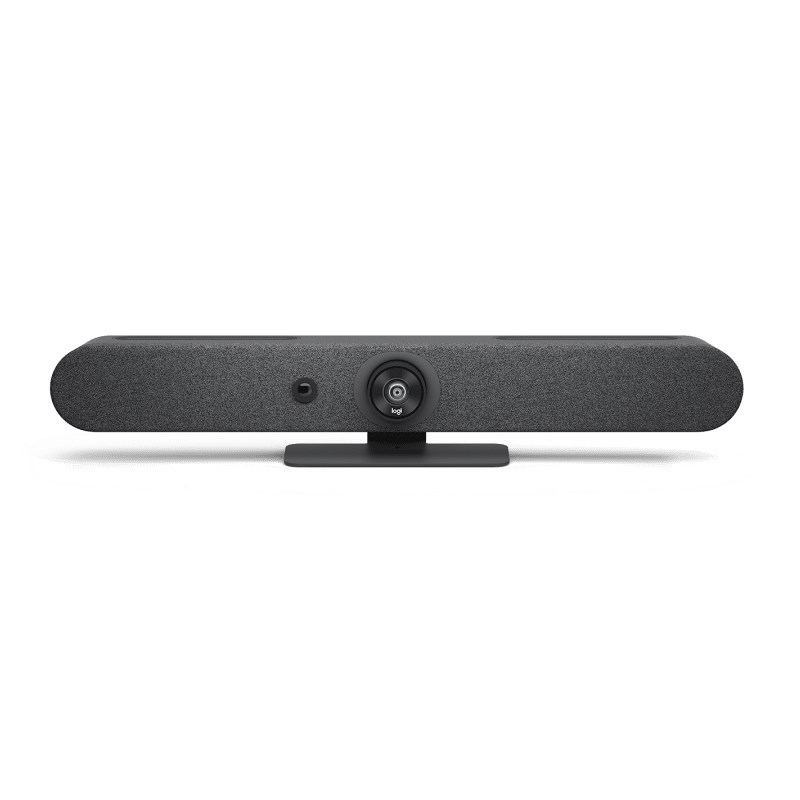

Logitech 960-001343 Rally Bar Mini Graphite Conferencing Video Bar
In Stock at Warehouse
- 960-001343
- 960-001343
- VIDEO CONFERENCE
Logitech Rally Bar Mini All-in-One 4K UHD Video Conferencing Solution - Graphite - Certifications: Microsoft Teams, Zooms Room, Tecent Meeting Rooms - 6 Beamforming Microphone - PTZ Camera - 3 Speakers (Inbuilt) - AI Viewfinder - Cable Management - All-in-one Solution - Resolution Support: Up to 4K (Camera) - Adjustability: Pan & Tilt - Zoom: 4X HD Digital Zoom - Interface: 2x HDMI Out, 1x HDMI In, 3x USB Type-A, 1x USB Type-C, WiFi, External Mic Input - Bluetooth Remote Control - 960-001343
| · An innovative dual-camera system with optical zoom and an AI Viewfinder delivers fluid, cinematic video in small and medium rooms |
| · Rally Bar Mini’s advanced audio engineering delivers rich, natural sound and makes sure every voice is clearly heard |
| · Auto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound technology that improves over time |
| · Start your meeting with just one touch, seamlessly connecting Rally Bar Mini to your preconfigured room solution |
| · Run supported video conferencing applications – such as Zoom®, Microsoft Teams®, and others – directly on the device with no computer or laptop required |
SEE WHAT YOU’VE BEEN MISSING
With a dual-camera system and RightSight 2 auto-framing technology, Rally Bar Mini brings remote participants into the conversation. Choose Speaker View to highlight the active speaker, Group View to capture everyone in the room, or combine the two for an immersive and engaging experience.
RALLY BAR MINI
SIMPLE TO SET UP
Connect via USB to virtually any PC or Mac with no additional software needed.
SIMPLE TO USE
Start your meeting with just one touch, seamlessly connecting Rally Bar Mini to your preconfigured room solution.
LOOKS TRUE-TO-LIFE
Upgrade your meeting experience with razor-sharp video, outstanding colour, and full room coverage.
STAYS FOCUSED
Using AI, human perception, and motorized pan and tilt, Rally Bar Mini adapts to meeting dynamics and keeps the camera on the action.
SOUNDS AWESOME
Rally Bar Mini’s advanced audio engineering delivers rich, natural sound and makes sure every voice is clearly heard.
This diagram is not an exact replica of Rally Bar Mini's interior. The colour is intended to highlight features.
GREAT CONVERSATIONS START HERE
Auto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound™ technology that improves over time.

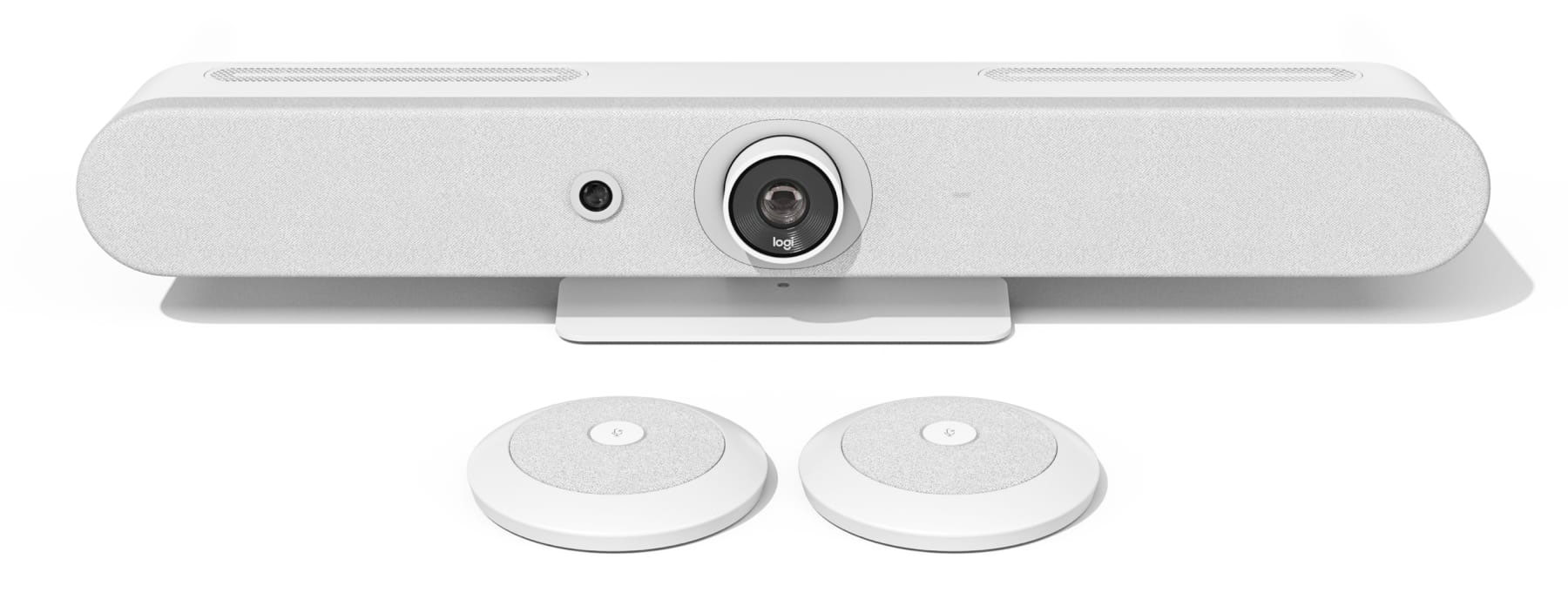

EXPAND THE CONVERSATION
Easily accommodate any small room or huddle space, starting with a 4.57 m mic pickup range and the option to add up to 2 Rally mic pods (varies by environment).
SUPER SMART
Keep the focus on meeting participants with AI Viewfinder, which uses scene awareness to optimize RightSight™ auto-framing and camera control.
AI-DRIVEN INSIGHTS
Track room usage data from the Logitech Sync Dashboard, captured by AI Viewfinder’s people count function.
SIMPLE TO MANAGE
Monitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used.
DEVICE MANAGEMENT TECHNOLOGY PARTNERS
Our integration with partner solutions and dashboards means you can easily manage your devices in other platforms.
REDUCE YOUR CARBON FOOTPRINT
Support remote workers and reduce business travel by replacing in-person meetings with video meetings that are as natural as face-to-face.

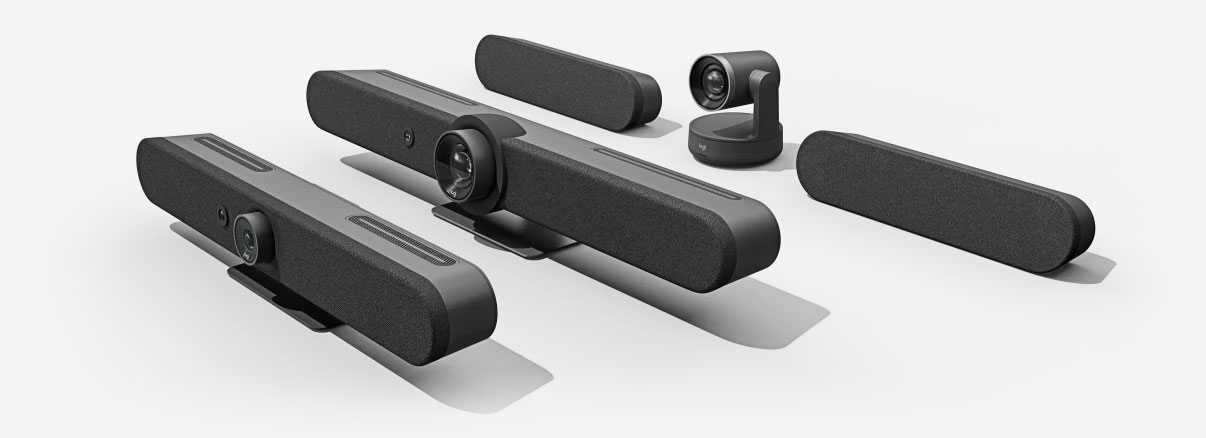

WELCOME TO THE FAMILY
Explore Logitech’s beautifully simple, next generation of small, medium, and large room solutions that can be deployed in PC or appliance mode.
RALLY BAR MINI
Premier all-in-one video bar for small rooms
RALLY BAR
All-in-one video bar for midsize rooms
TECHNICAL SPECIFICATIONS
Camera
Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical
Speakers
Woofer: 70 mm
Mid-range: 2x / 1.5 in
Output: 90 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Sensitivity: 86+/-2 dB SPL at 1W, ½ meter
THD: 1kHz < 2%
Speaker Sampling Rate: 48 kHz
Microphones
Frequency response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: 4.5 m
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI filter
Add-on Mics: Supports up to 2 additional Rally Mic Pods
RightSense™ Technologies
RightLight™: Renders natural skin tones for each participant.
RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants.
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Interfaces
HDMI Out: 2
HDMI In: 1
USB 3.0: 3x Type A, 1x Type C
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac (MIMO)
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy
Power & Cables
Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 127 mm x 51 mm x 30 mm
DC Cable: 1.5 m
AC Cable: 1 m
HDMI 1.4 Cable: 2 m
USB A to USB C 3.0 Cable: 2.2 m
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70 °C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting
Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
Certifications & Compatibility
Certifications: Zoom Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications
Compatibility: Plug and play USB connectivity with virtually any video conferencing application
Appliance mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances
Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.
GENERAL SPECIFICATIONS
Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management: Logitech Sync
Displays Supported: 2
Display Resolution: Up to 4K
